Example notebook neuralib.model.rastermap (widefield)
seealso rastermap and colab example
[1]:
import attrs
import numpy as np
import rastermap.utils
from rastermap import Rastermap
from scipy.stats import zscore
from neuralib.io.dataset import load_example_rastermap_wfield
from neuralib.model.rastermap import *
from neuralib.plot import plot_figure, ax_merge
from neuralib.typing import PathLike
Example of Wide-field dataset pipeline
Linear treadmill task
Visual stimulation epoch with circular patch (pink areas in the figure)
Tracking of behavioral variables. running, velocity
[2]:
%load_ext autoreload
%autoreload
Example of Wfield pipeline
prepare a container for image sequences information and computed singular_vector
[3]:
@attrs.define
class RasterMapInput:
"""
`Dimension parameters`:
W = image width
H = image height
T = number of image pulse
C = number of components after SVD reduction
S = number of stimulation (optional)
"""
height: int
"""Image height H"""
width: int
"""Image width W"""
# singular vector
n_components: int
"""Number of components after SVD reduction"""
sv: np.ndarray
"""Singular values. `Array[float, C]`"""
Vsv: np.ndarray
"""Right singular vector. `Array[float, [T, C]]`"""
U: np.ndarray
"""left singular vector. `Array[float, [W * H, C]]`"""
image_time: np.ndarray
"""1D wide-field imaging acquisition time. `Array[float, T]`"""
position: np.ndarray
"""1D animal position in the environment. `Array[float, T]`"""
velocity: np.ndarray
"""1D animal velocity in the environment. `Array[float, T]`"""
visual_stim_time: np.ndarray
"""2D on-off visual stimulation time. `Array[float, [S,2]]`"""
@property
def xpos(self) -> np.ndarray:
x = np.arange(self.width)
y = np.arange(self.height)
return np.meshgrid(x, y)[0]
@property
def ypos(self) -> np.ndarray:
x = np.arange(self.width)
y = np.arange(self.height)
return np.meshgrid(x, y)[1]
@property
def visual_stim_start(self) -> float:
return float(self.visual_stim_time[0, 0])
def visual_stim_trange(self, trange: tuple[float, float]) -> np.ndarray:
"""select visual stim time range segments
:return (nStim, 2)
"""
vt = self.visual_stim_time # (N,2) -> (N*2)
start_idx, end_idx = np.searchsorted(vt.ravel(), list(trange))
# map to (N, 2)
start_stim_idx = int(start_idx // 2)
end_stim_idx = int(end_idx // 2)
if start_idx % 2 != 0:
vt[start_stim_idx, 0] = trange[0]
if end_idx % 2 != 0:
vt[end_stim_idx, 1] = trange[1]
return vt[start_stim_idx: end_stim_idx]
[4]:
# Prepare config dict
DEFAULT_WFIELD_RASTER_OPT: RasterOptions = {
'n_clusters': 100,
'locality': 0.5,
'time_lag_window': 10,
'grid_upsample': 10
}
[5]:
def run_rastermap_wfield(dat: RasterMapInput,
ops: RasterOptions | None = None,
neuron_bins: int = 500,
**kwargs) -> RasterMapResult:
if ops is None:
ops = DEFAULT_WFIELD_RASTER_OPT
ops['n_PCs'] = dat.n_components
model = Rastermap(
n_clusters=ops['n_clusters'],
n_PCs=ops['n_PCs'],
locality=ops['locality'],
time_lag_window=ops['time_lag_window'],
grid_upsample=ops['grid_upsample'],
**kwargs
).fit(
Usv=dat.U * dat.sv, # left singular vectors weighted by the singular values
Vsv=dat.Vsv # right singular vectors weighted by the singular values
)
embedding = model.embedding
isort = model.isort
Vsv_sub = model.Vsv # these are the PCs across time with the mean across voxels subtracted
U_sn = rastermap.utils.bin1d(dat.U[isort], bin_size=neuron_bins, axis=0) # bin over voxel axis
sn = U_sn @ Vsv_sub.T
sn = zscore(sn, axis=1)
ret = RasterMapResult(
filename='', # replace to user specific
save_path='', # replace to user specific
isort=isort,
embedding=embedding,
ops=ops,
user_clusters=[],
super_neurons=sn
)
return ret
# =============================== #
# Plot cluster and Voxel colormap #
# =============================== #
def plot_rastermap_sort(dat: RasterMapInput,
raster: RasterMapResult,
trange: tuple[int, int]):
tmask = np.logical_and(trange[0] <= dat.image_time, dat.image_time <= trange[1])
time = dat.image_time[tmask]
with plot_figure(None, 11, 20, gridspec_kw={'wspace': 1, 'hspace': 1}, tight_layout=False) as _ax:
# position
ax1 = ax_merge(_ax)[0, :-1]
ax1.plot(time, dat.position[tmask], color='k')
ax1.axis("off")
ax1.set_title("position", color='k')
# running speed
ax2 = ax_merge(_ax)[1, :-1]
ax2.plot(time, dat.velocity[tmask], color='k')
ax2.axis("off")
ax2.set_title("running speed", color='k')
ax2.sharex(ax1)
# superneuron
ax3 = ax_merge(_ax)[2:, :-1]
ax3.sharex(ax1)
ax3.imshow(raster.super_neurons[:, tmask],
cmap="gray_r",
vmin=0,
vmax=0.8,
aspect="auto",
extent=(trange[0], trange[1], raster.n_super, 0))
ax3.set(xlabel="time(s)", ylabel='superneurons')
# visual stim
if dat.visual_stim_start <= trange[1]:
for v in dat.visual_stim_trange(trange=trange):
ax3.axvspan(v[0], v[1], color='mistyrose', alpha=0.6)
# disable
ax4 = ax_merge(_ax)[:2, -1]
ax4.axis('off')
# color bar
ax4 = ax_merge(_ax)[2:, -1]
ax4.imshow(np.arange(0, raster.n_super)[:, np.newaxis], cmap="gist_ncar", aspect="auto")
ax4.axis("off")
def plot_raster_voxel(dat: RasterMapInput,
raster: RasterMapResult,
output: PathLike | None = None):
with plot_figure(output) as ax:
ax.scatter(dat.xpos,
dat.ypos,
s=1, c=raster.embedding, cmap="gist_ncar", alpha=0.25)
ax.invert_yaxis()
ax.set(xlabel='X position (um)', ylabel='Y position')
ax.set_aspect('equal')
[6]:
cache = load_example_rastermap_wfield() # Replace to your own input data: RastermapInput(...)
raster_input = RasterMapInput(
height=cache['height'],
width=cache['width'],
n_components=cache['n_components'],
sv=cache['sv'],
Vsv=cache['Vsv'],
U=cache['U'],
position=cache['position'],
velocity=cache['velocity'],
image_time=cache['image_time'],
visual_stim_time=cache['visual_stim_time']
)
[7]:
res = run_rastermap_wfield(raster_input)
data normalized, 0.08sec
sorting activity: 285534 valid samples by 9626 timepoints
100 clusters computed, time 52.52sec
clusters sorted, time 61.55sec
clusters upsampled, time 63.81sec
rastermap complete, time 63.83sec
[8]:

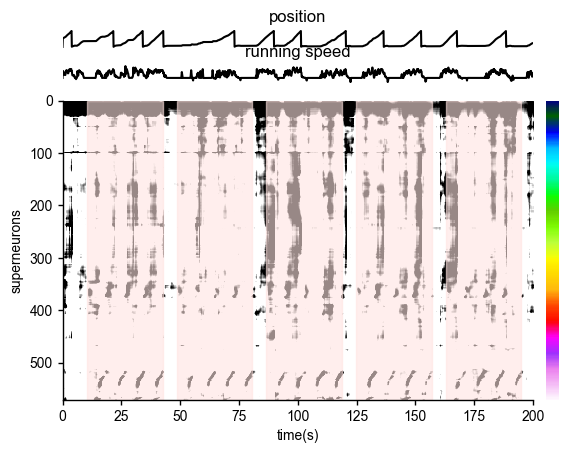

plot_rastermap_sort(raster_input, res, trange=(0, 200))
[9]:

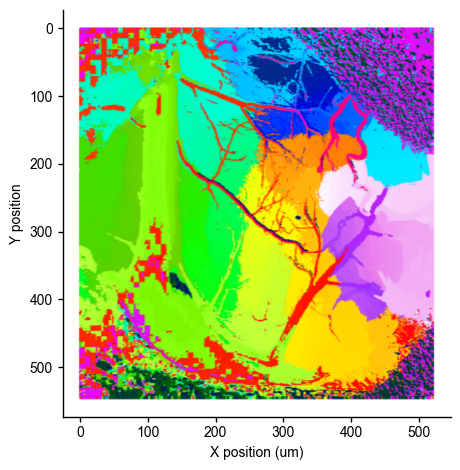

plot_raster_voxel(raster_input, res)
