Example notebook neuralib.argp
Generating results with flexible options
Type annotated and simple validator for management
Structural class inheritances fallowed by experimental logic
CLI-based for easier run pipeline on server
[1]:
from typing import ClassVar
import numpy as np
from matplotlib import pyplot as plt
from neuralib.argp import AbstractParser, argument, int_tuple_type
from neuralib.util.verbose import fprint
Create a common base class for data information
[2]:
from pathlib import Path
from typing import Literal
class BaseOptions:
GROUP_BASE: ClassVar = 'Base Options for the Data'
date: str = argument(
'-D', '--date',
metavar='YYMMDD',
required=True,
group=GROUP_BASE,
help='experimental date'
)
animal: str = argument(
'-A', '--animal',
metavar='NAME',
required=True,
group=GROUP_BASE,
help='animal(mouse) id'
)
recording: Literal['ephys', 'wfield', '2P'] = argument(
'-R', '--recording',
metavar='DATA_TYPE',
default='two_photon',
group=GROUP_BASE,
help='recording type'
)
data_source: Literal['local', 'mnt_server1'] = argument(
'--src',
metavar='PATH',
default='local',
group=GROUP_BASE,
help='Path for the data source'
)
@property
def data_path(self) -> Path:
filename = f'{self.date}_{self.animal}_{self.recording}'
if self.data_source == 'local':
return Path('/Users/foo/data') / filename
elif self.data_source == 'mnt_server':
return Path('/mnt/mnt_server1') / filename
else:
raise NotImplementedError('')
Create a class for the Two-photon Calcium imaging
[3]:
class TwoPhotonOptions:
GROUP_2P: ClassVar = 'Options for the two-photon calcium imaging'
optic_plane: int = argument(
'-P', '--plane',
metavar='INDEX',
validator=lambda it: 0 <= it <= 3,
default=0,
group=GROUP_2P,
help='optic_plane for volumetric scanning, from 0 to 3'
)
neuron_id: int | None = argument(
'-N', '--neuron-id',
default=None,
group=GROUP_2P,
help='neuron id'
)
Create a class for the Behavioral options
[4]:
class BehavioralOptions:
GROUP_BEHAVIOR: ClassVar = 'Options for the behavioral task'
running_epoch: bool = argument(
'--running',
group=GROUP_BEHAVIOR,
help='whether only use running epoch'
)
smooth_kernel: int | None = argument(
'--smooth-kernel',
metavar='KERNEL',
type=int,
default=None,
group=GROUP_BEHAVIOR,
help='kernel size for smooth running speed'
)
remove_backward: bool = argument(
'--no-backward',
group=GROUP_BEHAVIOR,
help='whether to remove the backward running'
)
Create the main run class for generating your figures
[5]:
class ExamplePlotRunningOptions(AbstractParser, BaseOptions, TwoPhotonOptions, BehavioralOptions):
DESCRIPTION = 'Plot for running versus two-photon signals'
time_interval: tuple[int, int] | None = argument(
'--time',
metavar='SECONDS',
type=int_tuple_type,
default=(0, 100),
validator=lambda it: len(it) == 2, # validator for 2 elements
help='time interval (START,END)'
)
def run(self):
"""MAIN for run"""
self.plot()
def plot(self):
fprint(f'Now plotting from: {self.data_path}')
time = np.linspace(0, 1000, 1000)
# process velocity
velocity = np.random.rand(1000)
if self.remove_backward:
velocity[velocity < 0] = np.nan
if self.smooth_kernel is not None:
from scipy.ndimage import gaussian_filter1d
gaussian_filter1d(velocity, self.smooth_kernel, output=velocity)
# two-photon signal
signal_2p = np.random.rand(10, 1000) # generate (N, T) for 10 neurons
# time limit
if self.time_interval is not None:
x = slice(*self.time_interval)
time = time[x]
velocity = velocity[x]
signal_2p = signal_2p[:, x]
# plot
if self.neuron_id is not None:
_, ax = plt.subplots()
signal_2p = signal_2p[self.neuron_id, :]
ax.plot(time, signal_2p, label='calcium signal')
ax.plot(time, velocity, label='velocity')
ax.set(xlabel='time(sec)', ylabel='signal')
ax.set_title(f'neuron: {self.neuron_id}')
ax.legend()
else:
nrow, ncol = 2, 5
_, ax = plt.subplots(nrow, ncol, figsize=(12, 8))
for i, sig in enumerate(signal_2p):
r, c = divmod(i, 5)
ax[r, c].plot(time, sig)
ax[r, c].plot(time, velocity)
ax[r, c].set_title(f'neuron: {i}')
ax[r, c].axis('off')

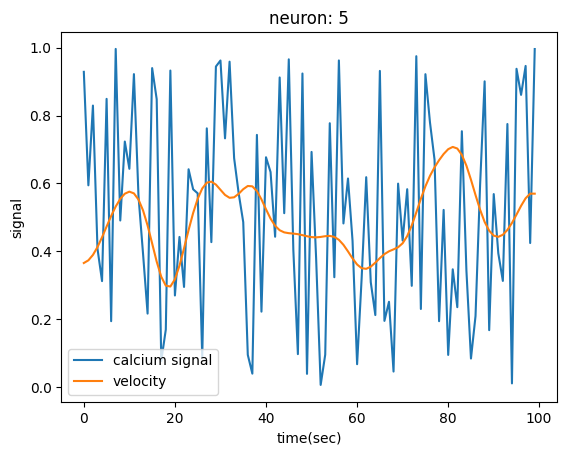

Run example of neuron: 5, and time interval (0,100) with running smoothing
also run on terminal if in a
.pyscript (python -m MODULE.PATH -D 250101 -A mouse01 ...)
[6]:
from neuralib.argp import parse_args, as_dict
from pprint import pprint
opt = parse_args(
ExamplePlotRunningOptions(),
['-D=250101', '-A=mouse01', '-R=2P', '--plane=1', '--smooth-kernel=3', '--neuron-id=5', '--time=0,100']
)
pprint(as_dict(opt)) # see options given
opt.run()
{'animal': 'mouse01',
'data_source': 'local',
'date': '250101',
'neuron_id': 5,
'optic_plane': 1,
'recording': '2P',
'remove_backward': False,
'running_epoch': False,
'smooth_kernel': 3,
'time_interval': (0, 100)}
[INFO][25-03-14 16:25:25] - Now plotting from: /Users/foo/data/250101_mouse01_2P

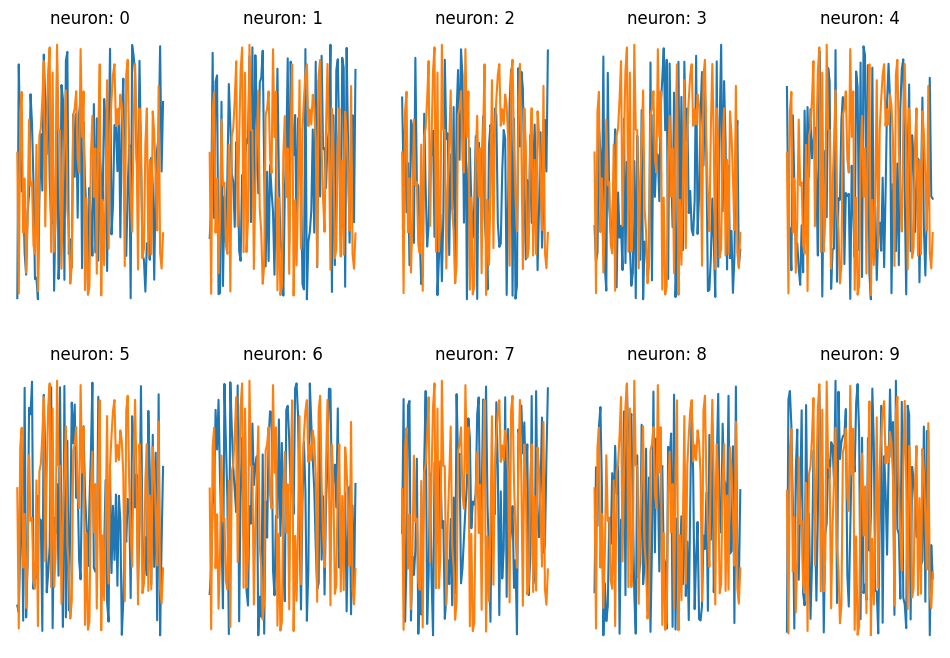

Run example of all neurons, and time interval (100, 200) without smooth
[7]:
opt = parse_args(
ExamplePlotRunningOptions(),
['-D=250101', '-A=mouse01', '-R=2P', '--plane=2', '--time=100,200']
)
pprint(as_dict(opt)) # see options given
opt.run()
{'animal': 'mouse01',
'data_source': 'local',
'date': '250101',
'neuron_id': None,
'optic_plane': 2,
'recording': '2P',
'remove_backward': False,
'running_epoch': False,
'smooth_kernel': None,
'time_interval': (100, 200)}
[INFO][25-03-14 16:25:25] - Now plotting from: /Users/foo/data/250101_mouse01_2P
Show help message
also run on terminal if in a
.pyscript (python -m MODULE.PATH -h ...)
[8]:
from neuralib.argp import print_help
print_help(opt)
usage: ipykernel_launcher.py [-h] [--time SECONDS] [--running]
[--smooth-kernel KERNEL] [--no-backward]
[-P INDEX] [-N NEURON_ID] -D YYMMDD -A NAME
[-R DATA_TYPE] [--src PATH]
Plot for running versus two-photon signals
options:
-h, --help show this help message and exit
--time SECONDS time interval (START,END)
Options for the behavioral task:
--running whether only use running epoch
--smooth-kernel KERNEL
kernel size for smooth running speed
--no-backward whether to remove the backward running
Options for the two-photon calcium imaging:
-P INDEX, --plane INDEX
optic_plane for volumetric scanning, from 0 to 3
-N NEURON_ID, --neuron-id NEURON_ID
neuron id
Base Options for the Data:
-D YYMMDD, --date YYMMDD
experimental date
-A NAME, --animal NAME
animal(mouse) id
-R DATA_TYPE, --recording DATA_TYPE
recording type
--src PATH Path for the data source
